● A compact metallurgical microscope with simple polarization for observation of metals, plastics, and other materials in manufacturing and QC industries
● Three plan-achromatic objective lenses provide magnifications ranging from 50X to 1000X
● Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
● The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
Specification:
● Head: Trinocular head
● Eyepiece: WF10X/20mm
● Infinitive plan Achromatic Objective:
5x/0.12, WD=23.6mm
10x/0.25,WD=17.8mm
40x/0.40, WD=10.4mm
50x/0.55, WD=7.6mm
● Nosepiece: Quadruple nosepiece

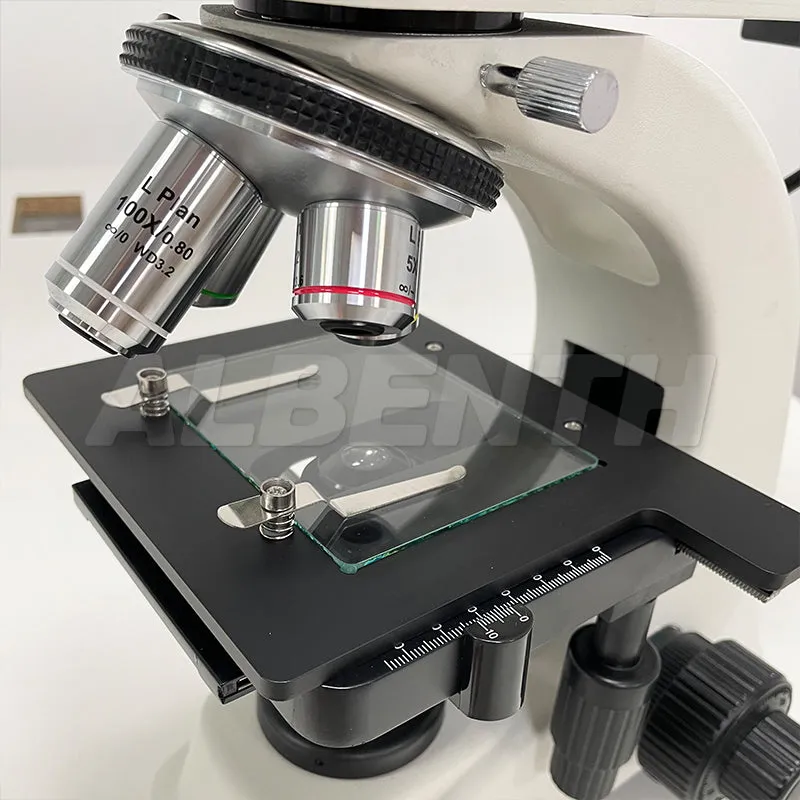

● Stage: Double layer mechanical stage, size 150x140m, movement 75x50mm

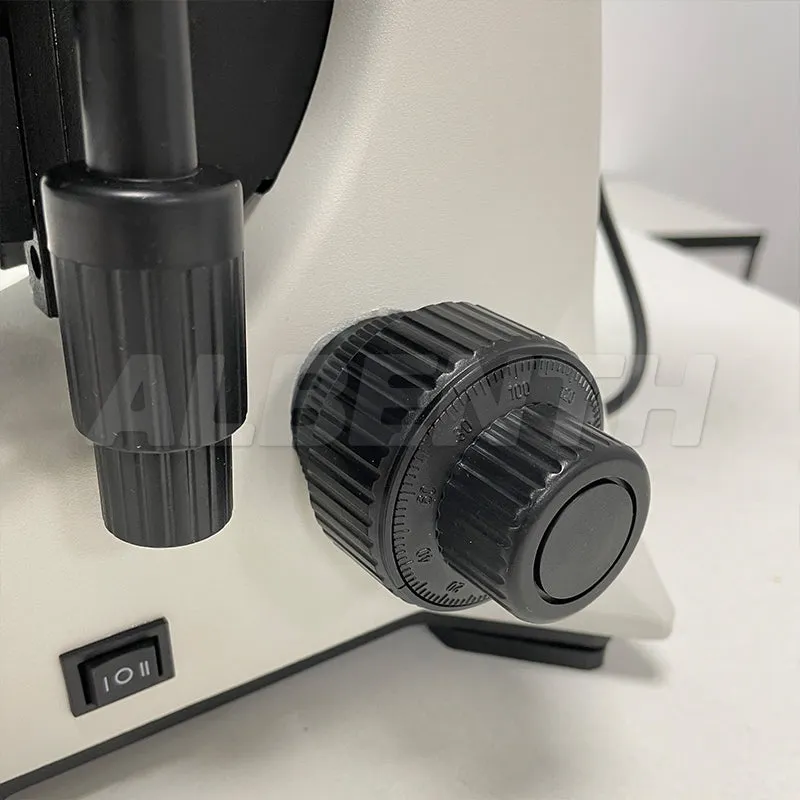

● Focusing: Coaxial fine and coarse adjustment.

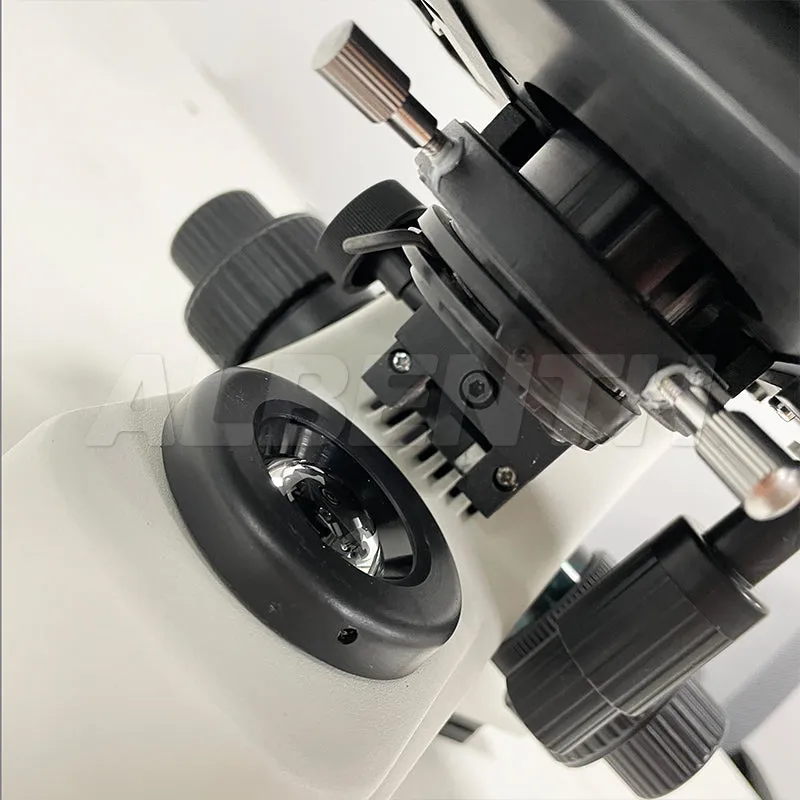

●Illuminator: Kohler illumination, Epi-illuminator with Iris aperture diaphragm and iris field diaphragm.
●Illumination: halogen lamp. brightness adjustment.
●Filter: Blue, green, yellow, diffuser.
●Polarization Attachment: polarizer, analyzer,
Packing List :

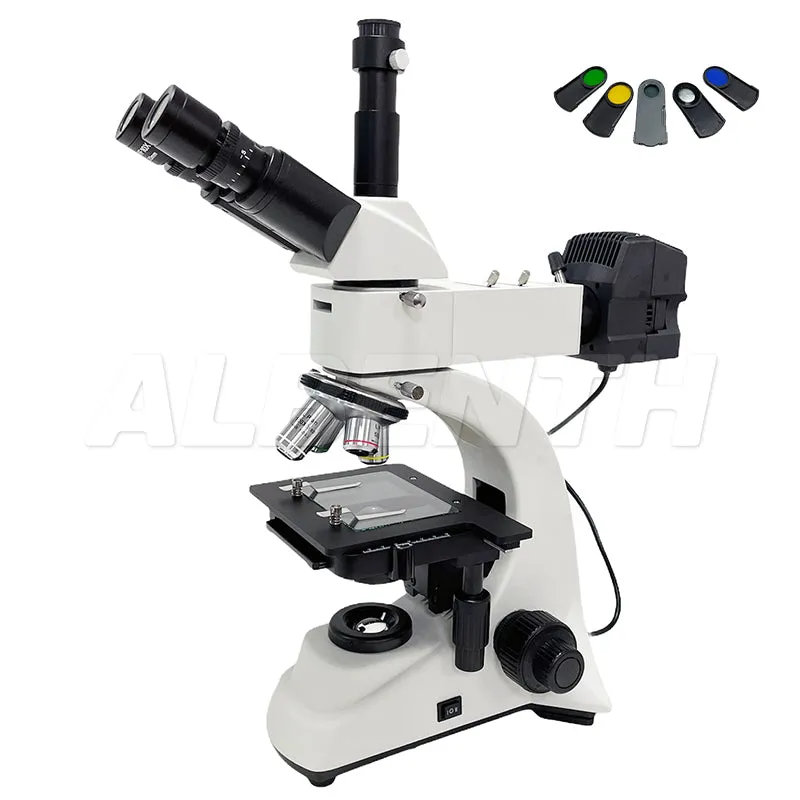

1x AJX-20TRP microscope with trinocular Siedentopf head
1x Photo tube
1x Infinitive plan Achromatic Objective (5X, 10X, 40X, 50X)
1x Pair of WF10X/20mm eyepieces

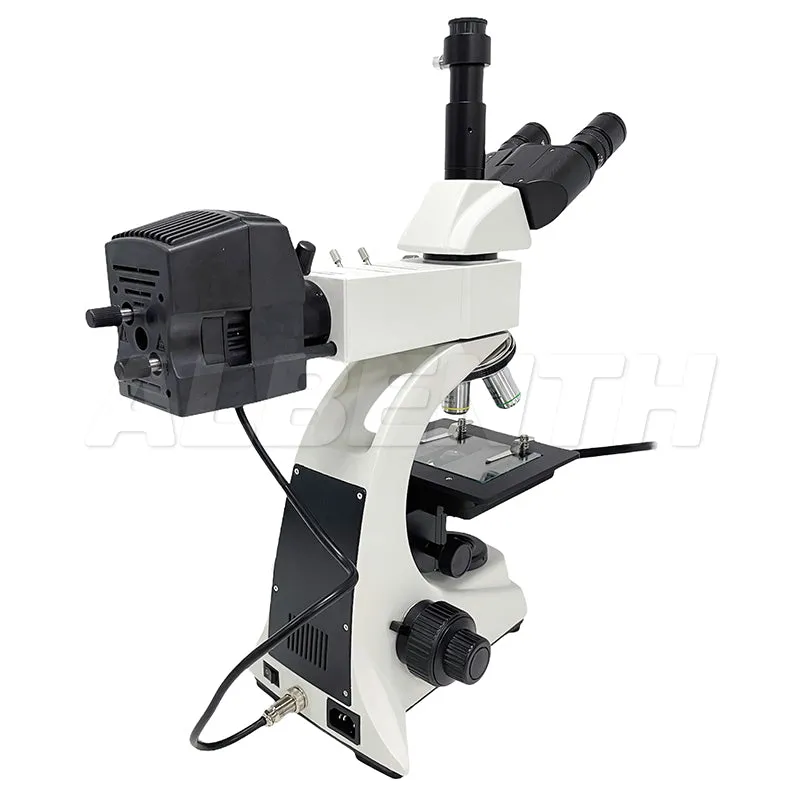

1x Halogen episcopic illuminator module
1x Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
1x AC cord
1x Dust cover
1x Tension wrench
1x User's Manual
