KEY FEATURES

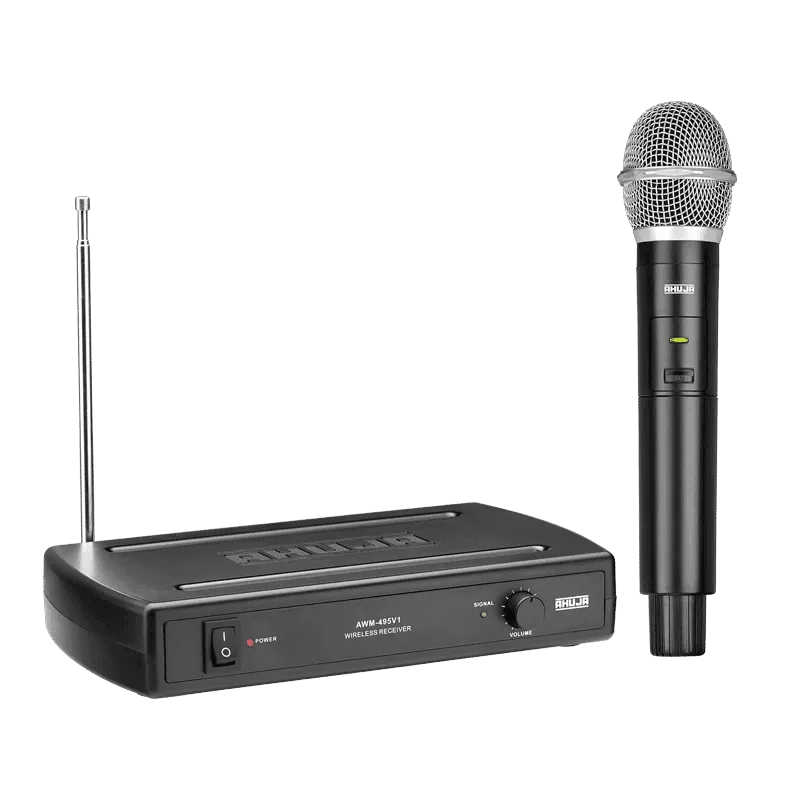

- Compact, lightweight, Single Channel VHF Wireless Microphone System.
- Operates at Quartz Crystal Locked VHF High Band frequency and available in different frequencies.
- Internal antenna in the Transmitter and a telescopic antenna in the Receiver for clear and distortion free reception.
- Receiver operates on 12V DC through an AC Adaptor supplied alongwith the system. The transmitter operates with a 2x1.5V AA Pencil cell.
- Transmitters have 2-position ON/OFF slide switch.
- Audio output from receiver available through 6.3mm (¼”) jack socket.
SPECIFICATIONS
| RF Output Power | 15mw (max.) |
| Modulation Mode | FM (F3E) |
| Microphone Element | Dynamic, Cardioid |
| Dynamic Range | 80dB |
| Frequency Response | 50-15,000Hz |
| Antenna Type | Internal dipole |
| Current Consumption | ≤100mA |
| Power Requirement | 3V (2 × 1.5V AA Pencil Cells) |
| Controls | Transmitter ON/OFF Switch |
| Indication | Green LED for indicating microphone is ON |
| Dimensions | Ø55 (L248) mm |
| Weight | 180g (w/o battery) |
| RECEIVER | . |
| Frequency Stability | ± 0.005% Quartz Crystal Controlled |
| Receiving Method | Non-diversity |
| Audio Output | 0-55mV/1kΩ |
| Signal to Noise Ratio | > 80dB |
| Distortion | < 0.5% |
| Frequency Response | 50-15,000Hz |
| Antenna | Telescopic |
| Power Requirement | 240V AC 50Hz for AC adaptor (supplied along with) |
| Controls | Power On/Off Switch, Output Volume Control |
| Indications | Red LED for Power ON, Green LED for RF reception |
| Dimensions | W230 x H42 x D150 mm |
| Weight | 305g |
