Name: Aluminium Alloy pipe with 25 mm bypass 187-219mm MPA 200-25
SKU: 59497

$ 49.25

$ 64.03

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Details

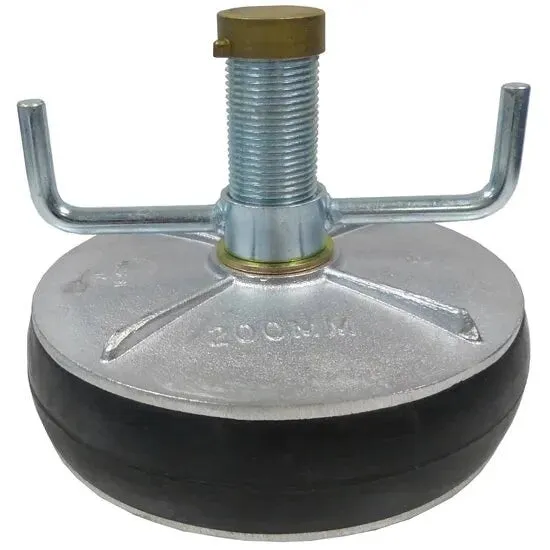

Aluminium Mechanical Test Plug 200 mm

This Aluminium Alloy Drain Test Plug expands to suit a variety of pipe sizes, providing reliable sealing for leak testing, isolation, sealing, stopping, and weld purging. Sizes range from 1.5" to 36" (38 to 900 mm). Simply insert the plug into the pipe and tighten the brass wing nut to expand the rubber ring and create a secure seal. The cap at the end can be unscrewed to relieve back pressure buildup behind the plug.

Key Features:

Part Number: 203 MPA 200-25
Start Range: 187 mm
End Range: 219 mm
Purge Port: 25 mm
Max Back Pressure: 48 kPa – 7 psi
Effective Sealing: Easy to insert and tighten using the wing nut and friction-free washers
Material: Aluminium alloy with rubber ring for a positive seal

The Aluminium Mechanical Test Plug offers a simple, reliable solution for sealing pipes and pipework, ensuring leak-tightness and dependable performance in industrial applications.
