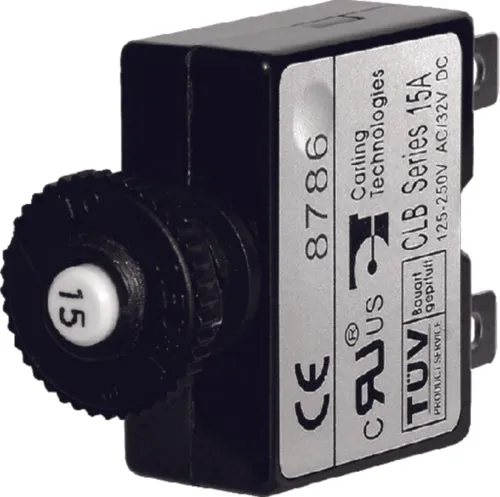

- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
| Specifications | |
|---|---|
| Amperage | 20A |
| Maximum Voltage | 32V DC |
| Mounting | Panel Mount 3/8-27 UNS |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Terminal Type | 1/4 Male Quick Connect |
| Interrupt Capacity | 3000A @ 14.7V 2500A @ 28V |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Screw Terminal Torque | 6 in-lb (0.68 Nm) |
| Weight | 0.06Lb (0.03 Kg) |
| Weight | 0.06lb (0.03 kg) |
| Optional Accessories | ||
|---|---|---|
| Works With | ||
|---|---|---|
| Meets the following Regulatory Specifications |
|---|
| |
