BACKORDERED 4-6 WEEKS. TO ORDER PLEASE SEND AN EMAIL TO

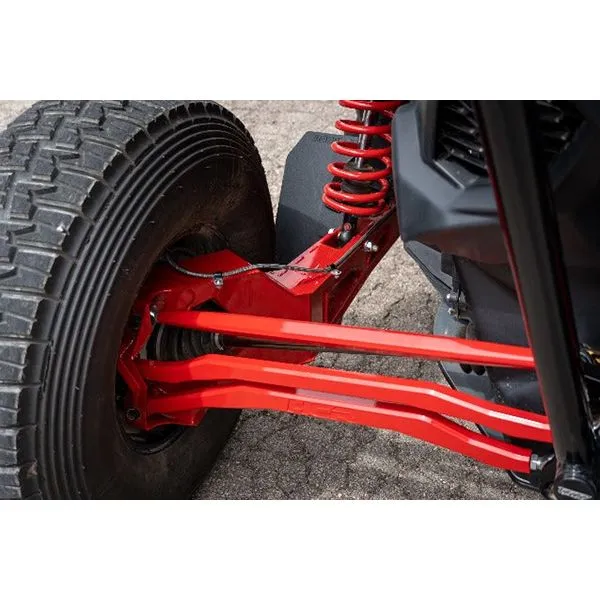

Rear Trailing Arm Kit includes 2 Rear Trailing arms and 2 shock bolts. You will need to use OEM Radial joints, Bolts and hardware (except shock bolts) and rear link hardware.

#MAV-05400-2

SOLID. CRAFTED. RELIABLE.

These three words only begin to describe HCR’s newest release: the Maverick X3 OEM Kit. As an early adopter, HCR has helped set the standard in UTV suspension for over a decade. A once radical performance upgrade has now become the norm, driving both aftermarket and OEM’s into a new era of UTV.

To take the already impressive X3 one step further, HCR has developed an American - made product to look, feel and function better than factory.

The HCR X3 suspension is designed as an OEM Factory replacement for the X RS 72" model Trailing Arms.

This heavy-duty replacement kit follows HCR’s blueprint of quality manufacturing, unparalleled craftsmanship, unmistakable design and distinguishing features which result in a product deserving of the HCR badge. These characteristics are what continue to underline the uniqueness of HCR.

The factories limitations of cost-driven manufacturing are no match to HCR’s commitment to quality construction and processes. The end result? A product we can stand behind.

DESIGN

In-house engineering and manufacturing capabilities allow HCR to immediately start design and reverse engineering the moment a new model is released. With the X3, HCR improved the hollow, factory design by adding pocketing and internal structure to increase strength and durability. The HCR signature High Clearance A Arm design increases ground clearance 1.5 inches under key components. Approach angles have been improved for reduced surface attraction and friction.

MATERIAL

Both the Can Am Maverick X3 Dual Sport and Elite kits are manufactured with HCR’s proprietary Elite material. This custom alloy is 30% stronger in yield and tensile strength than 4130 Series Chromoly and goes through several processes for better wear resistance and overall strength.

PROCESS

HCR Maverick X3 kits are fiber laser cut and CNC bent for accuracy and precise fit and finish. Each arm is properly fixtured and TIG welded by seasoned craftsmen for strength and aesthetics.

HCR had one simple goal with the X3 kit: to create a superior product that is more effective, reliable and rewarding to you, the owner. Through intensive craftsmanship, meticulous precision and BOLD Aesthetics, we strive to make HCR your #1 Choice.

72" Models
Can-Am Maverick X3 X RC Turbo R : 2018-2020
Can-Am Maverick X3 X RC Turbo RR : 2020-2021
Can-Am Maverick X3 X RS Turbo R : 2017-2020
Can-Am Maverick X3 RS Turbo R : 2021
Can-Am Maverick X3 X RS Turbo RR : 2020-2021
Can-Am Maverick X3 X MR Turbo R : 2018-2019
Can-Am Maverick X3 X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
Can-Am Maverick X3 MAX RS Turbo R : 2021
Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
Can-Am Maverick X3 RS Turbo RR 72 : 2022
Can-Am Maverick X3 X RS Turbo RR 72 : 2022
Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022
Can-Am Maverick X3 X RC Turbo RR 72 : 2022
Can-Am Maverick X3 X MR Turbo RR 72 : 2022
Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022
Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022
Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022
Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022 Polaris Xpedition XP 5 Ultimate : 2024

NOTE: 14" WHEELS WILL NOT FIT

*Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)*
