Lightweight Alloy
Frame
Kenda 700c
tyres
EverDrive® 250W
Electric Motor
36v Panasonic
cells
Alloy, The Metal of Choice
We design our bikes to last. That's why our engineers have built the E-Mode with an Alloy frame and other Alloy components. The alloy material offers greater durability, increasing the bike's lifespan while remaining lightweight, offering superb balance and handling.
Strong Stopping Power
Safety is imperative to any rider. That's why we've equipped the E-Mode with quality Mechanical Disc brakes for consistent, high-powered braking performance.
Quality Kenda 700c Tyres
Get the best of both worlds with impressive speed and handling on 700c tyres without having to sacrifice traction and evenness. With quality Kenda 700c tyres you can power through corners and overrough terrain with increased rollover capacity.

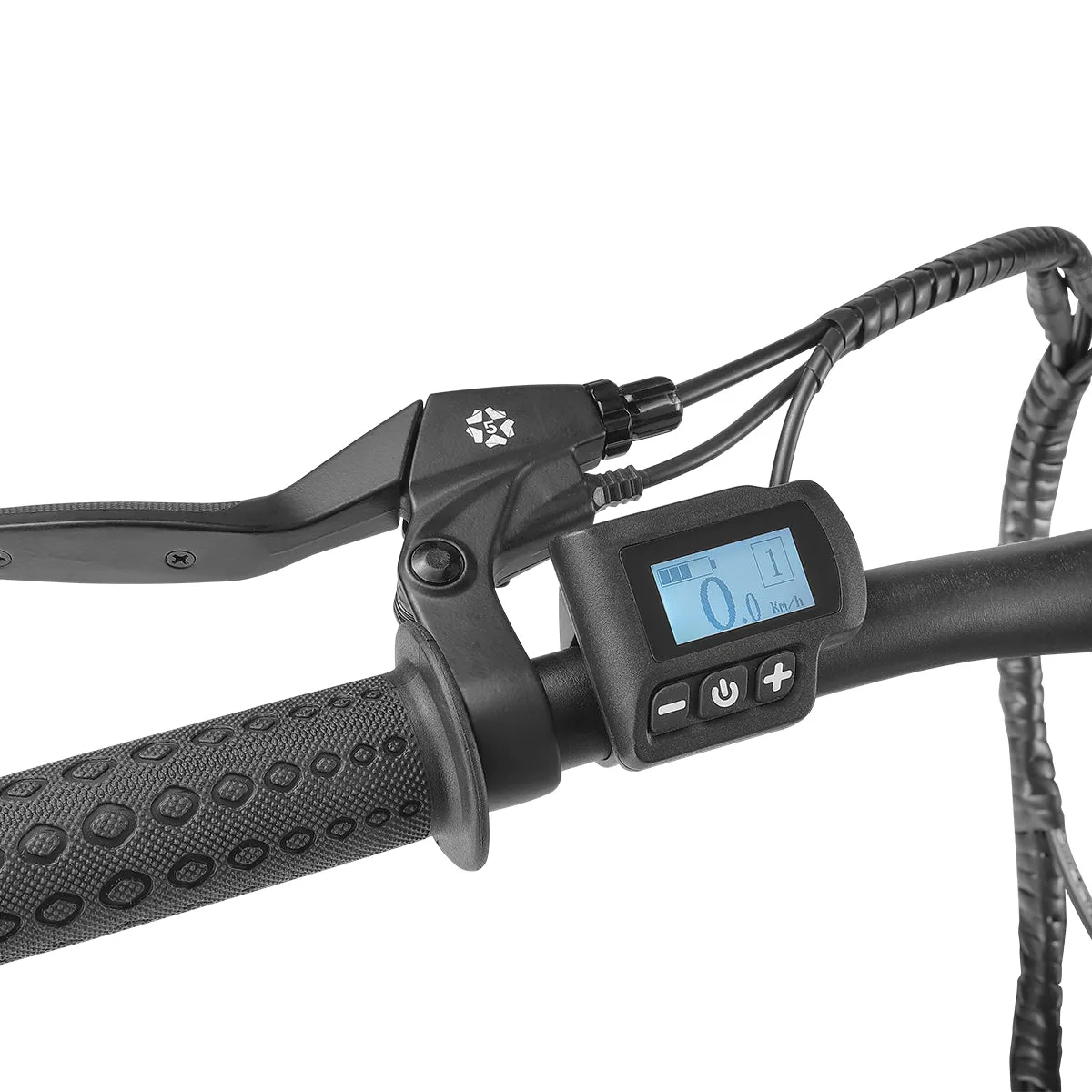

Be in Control
With a streamlined, easy to read EverDrive® (M4)LCD Display and built-in controller, you'll be able to see your speed, trip stats, current power assist & battery charge. You get 5 levels of power assist, with the higher number providing more motor assistance during pedals.

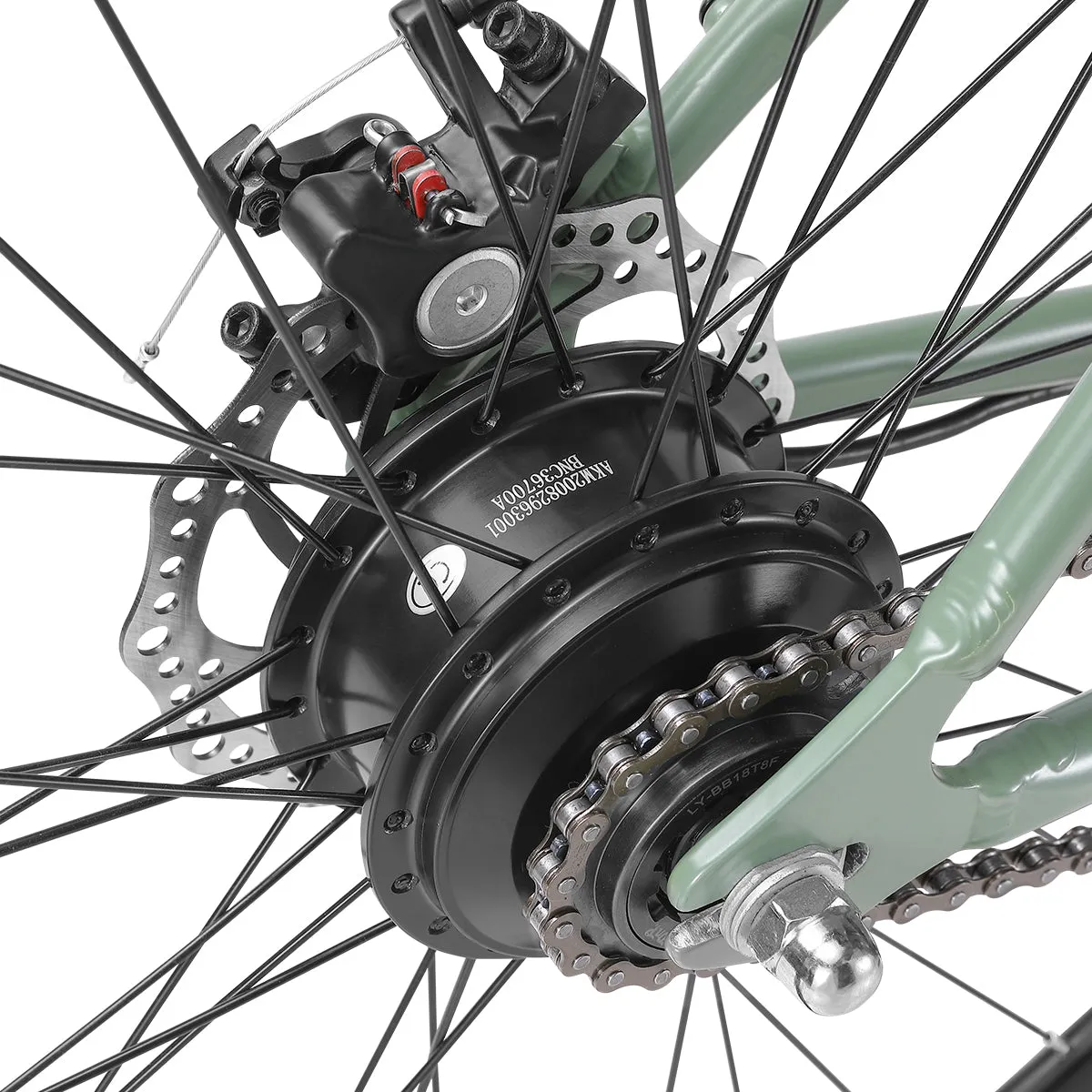

250W EverDrive® Motor
Go further than you ever have with an added 250w Electric Motor. Amplify your pedalling power to pick up speed or power through the most challenging inclines and terrain with ease.
EverDrive® 36v Integrated Battery
A great electric bike needs a great battery to work. The E-Mode comes with a big 36v Panasonic cells to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.
Simple, Fun & Single Speed
Not only does the E-Mode look great, but it is incredibly easy to maintain, it comes with minimal components and gives you full control & handling of the bike.

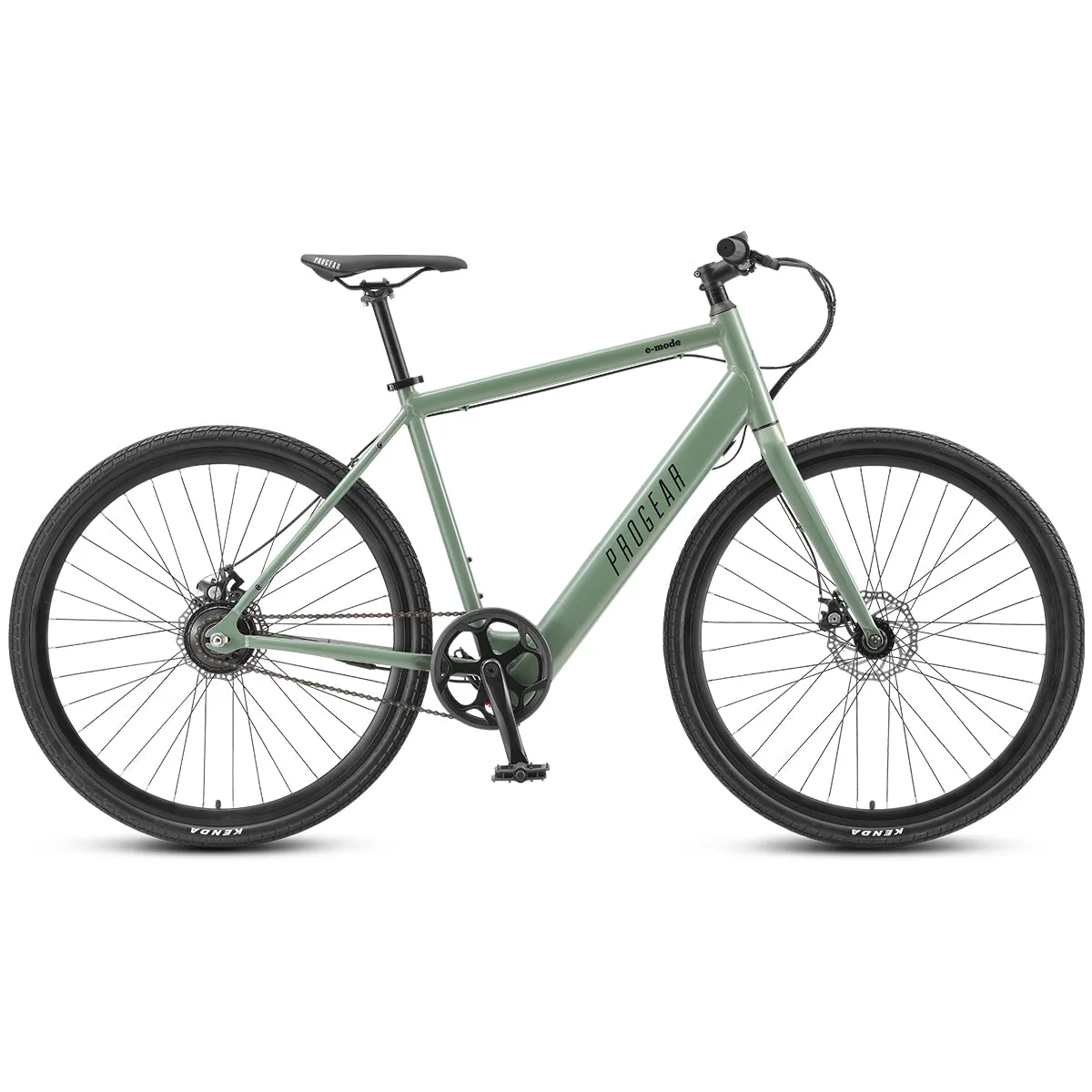

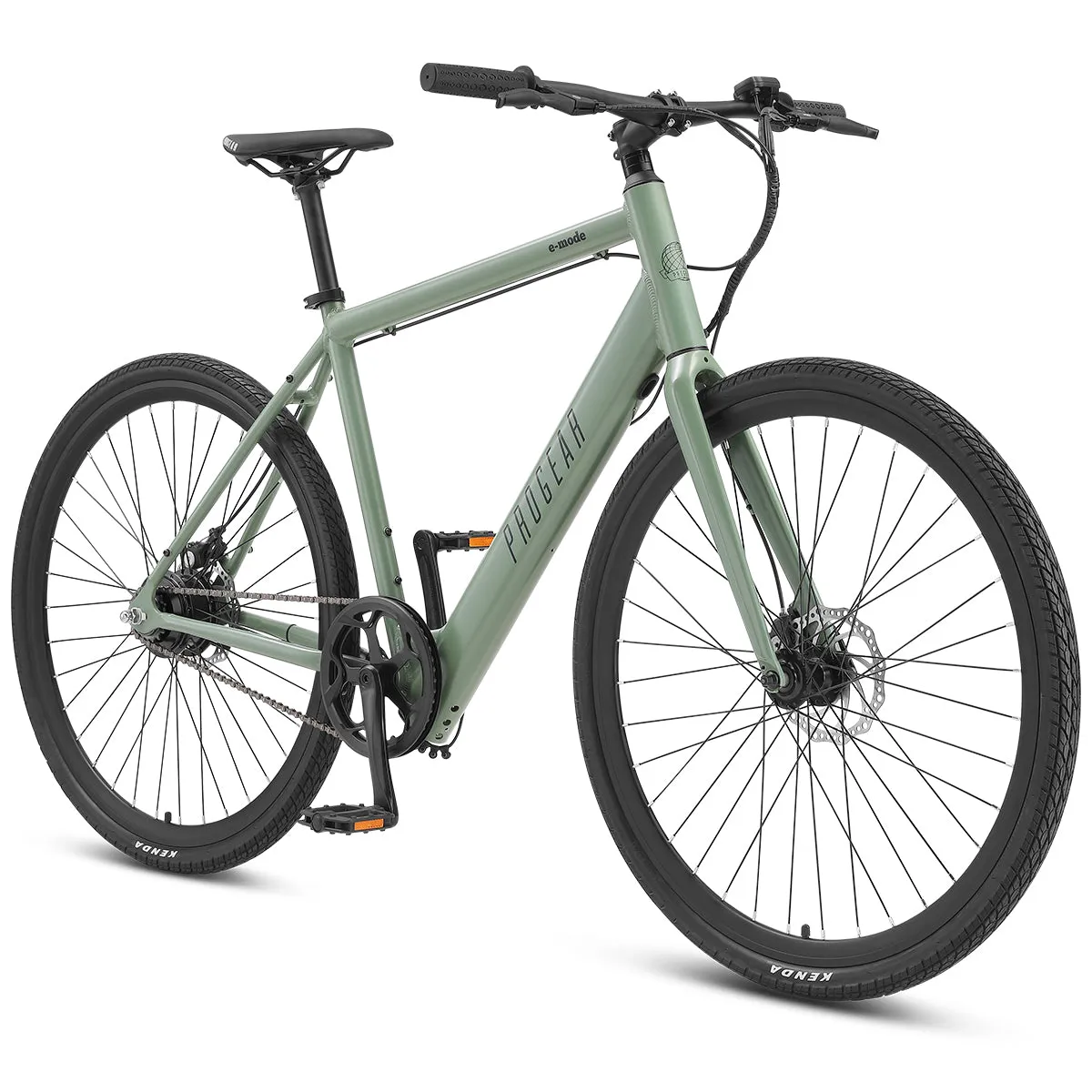

The Blueprints
An awesome package with the following components:
- A. Alloy Frame
- B. Adjustable Seat-post
- C. EverDrive® 36v Integrated Battery
- D. Mechanical Disc Brakes
- E. EverDrive® 250W Electric Motor
- F. Kenda 700c Tyres
Where to ride?
Specification
Technical Specifications
| Frame | Alloy 700c Frame |
|---|---|
| Fork | 700c Steel Fork |
| Handlebar | Alloy W:680mm H=15mm 6° |
| Stem | φ28.6mm x 70mm 7° |
| Grip | Rubber 130mm |
| Crank sets | Alloy 175mm Crankset |
| Pedal | 9/16" Pedal |
| Chain | 1/2″×1/8″×102L |
| Freewheel | 1/2″×1/8″×18T |
|---|---|
| Brake | Mechanical Disc Brakes, 160mm Rotors |
| Hub F. | 13G×36H |
| Rim | 13G×36H A/V H=20 |
| Spokes | 13g |
| Tire | Kenda 700 x 40c |
| Seat Post | 27.2×350mm |
| Kickstand | N/A |
Electrical Components
| Motor | EverDrive® Electric Motor 250W 25KM/H- Complies to EN15194 |
|---|---|
| Torque Sensor | CGQS6 |
| Display | EverDrive® M4 LCD 0-5 assist level, Max Speed 25kph |
| Controller | 27.5/700C, 36V*350W |
|---|---|
| Battery | EverDrive® 36v / 9.6AH (Panasonic Cells) complies to UN38.3/MSDS |
| Charger | 36V Input:100-240V 1.8A(MAX)50/60HZ AU |
Box Sizing Guide
| Frame Size Number | 50cm | 53cm | 56cm |
| Wheel Size | 700c | 700c | 700c |
| Suggested Height | 165-180cm | 175-190cm | 185cm |
| Minimum Suggested Inseam | 82cm | 85cm | 88cm |
| A - Seat Tube | 50cm | 53cm | 56cm |
| B - Seat Tube Angle | 72.5deg | 72.5deg | 72.5deg |
| C - Head Tube Length | 20cm | 20cm | 20cm |
| D - Effective Top Tube | 57.5cm | 59cm | 60.5cm |
| E - Chainstay length | 45.4cm | 45.4cm | 45.4cm |
| F - Wheelbase | 107cm | 109cm | 110cm |
| G - Standover | 80cm | 83cm | 86cm |
