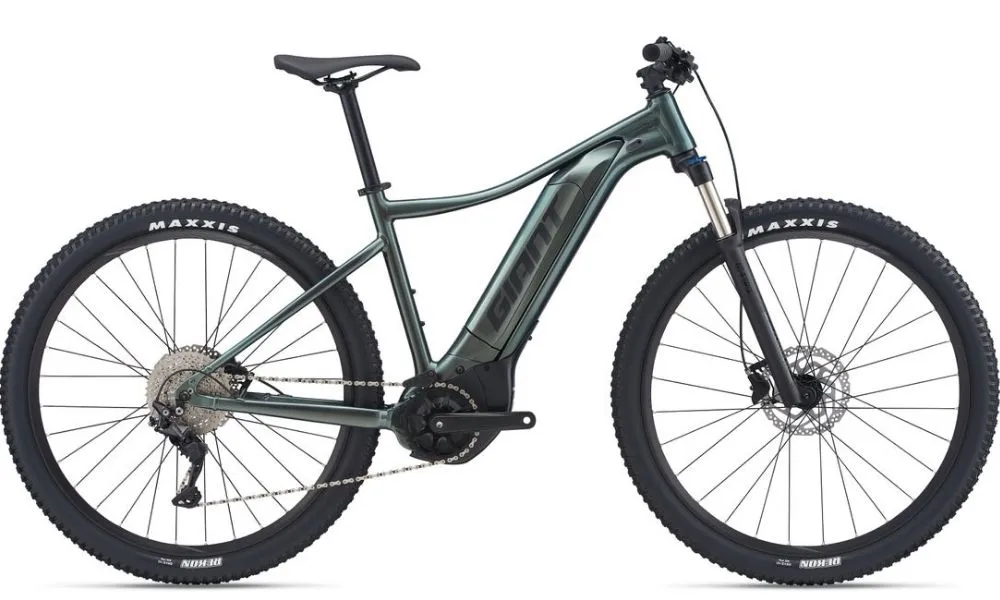

Giant 2022 Talon E 1
The trail is calling, and here’s your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.
The Talon E provides you the perfect mix - traditional hardtail design with the added benefit of being an electric bike. This e-bike has much to offer allowing you to travel further and faster with comfort and confidence. Use the bike both on the road/bike paths or on off-road terrain as the motor provides extra assistance to help you climb. The Talon E 1 holds a side release EnergyPak 500Wh which is easy to remove for charging.
Smooth Power Delivery
The SyncDrive Core motor technology delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.
Balanced, Confident Handling
Lightweight aluminium frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels put you in control on off-road terrain.
Long-Lasting Battery
Side Release EnergyPak with 500Wh of capacity is easy to charge with our 4A smart charger.
Specifications
Giant 2022 Talon E 1
Frame
Colour: Balsam Green
Frame: ALUXX Aluminium, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount
Fork: SR Suntour XCR 32 Coil LO Boost 29 100mm travel, Tapered 1½ - 1⅛" steerer, lockout
Shock: N/A
Weight: N/A
Drivetrain
Crankset: FSA Comet E-Bike crank arm set, FSA MegaTooth Direct-mount 1X steel 36T
Pedals: N/A
Chain: KMC e.10 Sport, e-bike optimized
Bottom Bracket: N/A
Rear Derailleur: Shimano Deore, 10-speed, Shadow
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano HG50-10, 11-42T, 10-speed
Drive Unit: SyncDrive Core, 50Nm, Powered by Yamaha
Battery: EnergyPak 500Wh
Wheels
Tires: Maxxis Rekon 29x2.4" Wire Bead 60TPI
Wheels/Rims: Giant GX03V
Hubs: Giant eTracker Sport, [F] 15mm Thru-Axle [R] 9mm QR, e-bike optimized
Braking System
Brakes: Tektro HD-M280, hydraulic disc, 180mm
Brake Levers: Shimano BL-MT200
Other
Handle Bar: Giant Connect TR Riser 31.8x690~750mm
Stem Headset: Giant Contact
Grips: Giant Sole-O Grip
Saddle: Giant Sport
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Controller: RideControl Dash, full color LCD screen
Display: RideControl Dash, full color LCD screen
Sizing Guide
Giant 2022 Talon E 1
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 405 | 455 | 505 | 535 |
| B | SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 575 | 600 | 625 | 650 |
| D | HEAD TUBE LENGTH (mm) | 105 | 115 | 125 | 140 |
| E | HEAD TUBE ANGLE | 68.0° | 68.0° | 68.0° | 68.0° |
| F | FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| G | TRAIL (mm) | 100.7 | 100.7 | 100.7 | 100.7 |
| H | WHEELBASE (mm) | 1141 | 1167 | 1193 | 1219 |
| I | CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
| J | BOTTOM BRACKET DROP (mm) | 45 | 45 | 45 | 45 |
| K | STACK (mm) | 625 | 634 | 643 | 657 |
| L | REACH (mm) | 384 | 406 | 428 | 449 |
| M | STAND OVER HEIGHT (mm) | 723 | 753 | 788 | 808 |
| O | STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| P | CRANK LENGTH (mm) | 160 | 165 | 170 | 170 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
