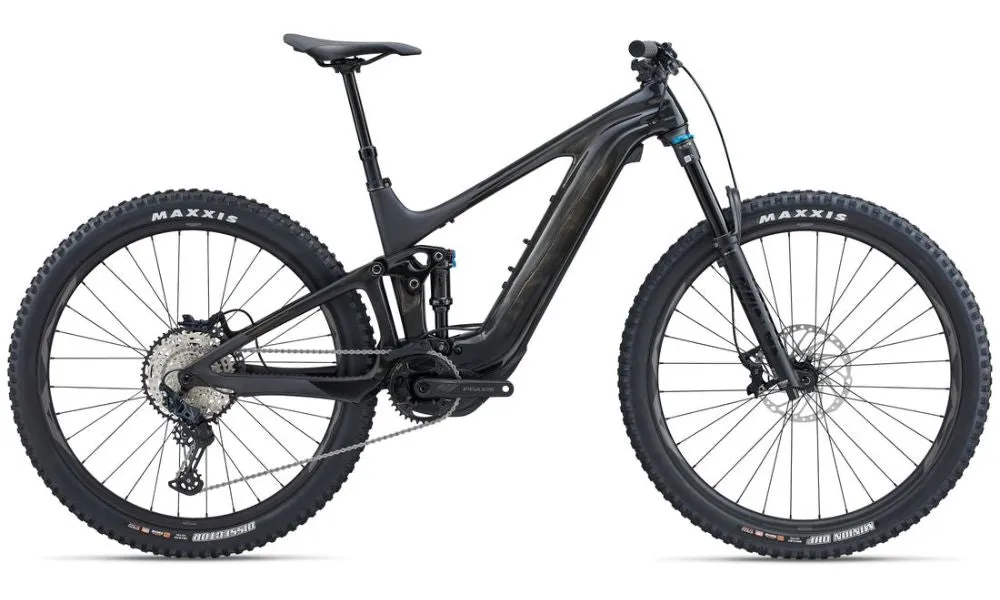

Giant 2023 Trance X Advanced E 2
A new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.
SyncDrive Pro motor delivers 85Nm of torque, so you have the freedom to ride trails the way you want to. The composite frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. Integrated Fox Live Valve technology electronically controls the suspension system. A RideControl Go multifunctional on/off button, and RideControl Ergo 3 control can be mounted on either the left or right side of the handlebar.
Powerful and responsive
SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Clean cockpit
RideControl Go top tube integrated multi function on/off button and RideControl Ergo 3 handlebar mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
Specifications
Giant 2023 Trance X Advanced E 2
Frame
Colour: Carbon Smoke
Frame: Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork: Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR, e-optimised
Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
Drivetrain
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set
Pedals:
Chain: KMC e.12 Sport, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore SLX, 12-speed, Shadow
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore SLX
Freewheel/Cassette: Shimano CS-M6100, 10-51T, 12-speed
Drive Unit: SyncDrive Pro, 85Nm, powered by Yamaha
Wheels
Tyres: [F] Maxxis Minion DHF 29x2.6"foldable, Tubeless, EXO , 3C MaxxTerra [R] Maxxis Dissector 29x2.6"foldable, Tubeless, EXO , 3C MaxxTerra
Wheels/Rims:Giant AM 29", Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock
Braking System
Brakes: Shimano CS-M6100, 10-51T, 12-speed
Brake Levers: Shimano CS-M6100, 10-51T, 12-speed
Other
Handlebar: Giant Contact TR35, alloy, 35mm
Stem: Giant Contact SL 35
Saddle: Giant Romero Trail
Seat Post: Giant Contact Switch dropper, remote
Battery: EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger: EnergyPak 6A smart charger
Control: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED displayANT Wireless display compatible
