| Head | - Binocular (Seidentopf), Trinoc available
- Digital cameras available
- Diopter adjustment /-5 (built into each eyepieces)
- Inclined 30°, rotates 360°
- 10X/22 Super WF HP eyepieces
- (15X/16 eyepieces available)
- 30mm eyetube
- Interpupillary distance range 50-75mm
|

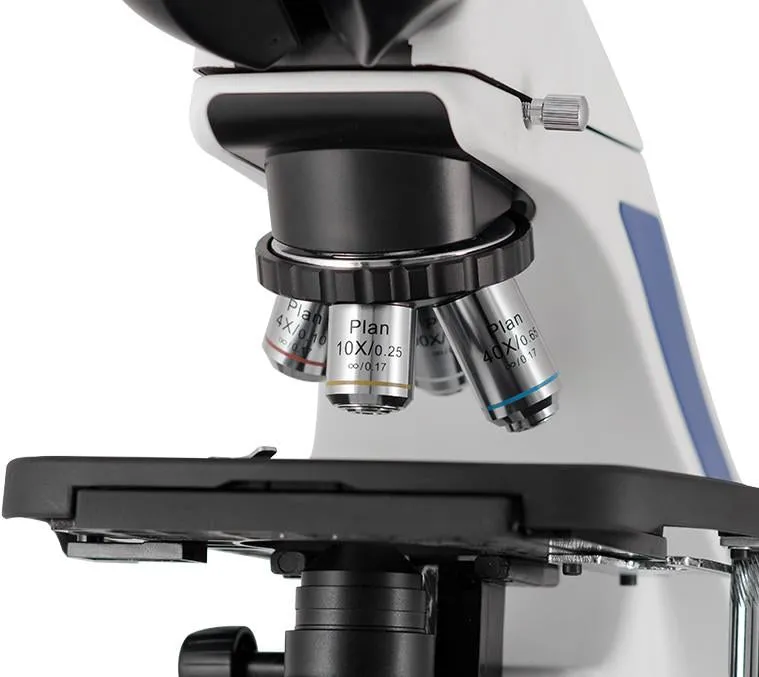

| Nosepiece | - Reverse quadruple / quintuple nosepiece
- Multiple ball bearing mounted
|
| Objectives | - Infinity High Contrast Plan objectives
- Choose from 4- or 5-hole nosepiece
- 4X, 10X, 40XR, 100XR (oil) with the 4-hole nosepiece
- 4X, 10X, 20X, 40XR, 100XR (oil) with the 5-hole nosepiece
- 50X (oil) and 60X dry objectives are also available
- Anti-fungal, parfocal, parcentric, color-code
|
| Stage | - Double Layer Mechanical Stage (216mm X 150mm)
- Graphite-Coated Surface
- Coaxial drive controls, rackless
- Range of traverse: 75mm x 55mm
- Slow-close hydraulic slide finger
|
| Focus | - Coarse adjustment: range of 18mm
- Fine adjustment: graduation of 0.001mm
- Tension control knob
|
| Illumination | - Movable Abbe condenser, NA 1.25
- Iris Diaphragm
- LED provides 50,000 hours of light and consistent, even brightness
- Variable light adjustment
- Simple Kohler illumination
- 90-240V / 50-60Hz automatic-switching power input
|
| Options | Phase contrast, Darkfield condenser (dry), Simple polarizer, WF 16X/15mm eyepieces |
| Weight and dims | - Height: 16 in (406 mm)
- Length: 15 in (381 mm)
- Width: 8.5 in (216 mm)
- Weight: 14.2 lbs (6.4 kg)
|
