Elite FS™ 7 All-Season Pack

Bring the power of Lowrance CHIRP sonar, DownScan Imaging™, and FishReveal™ to the ice, a kayak, or a small boat with the Elite FS 7 All-Season Pack.

The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fishfinding tools with a more affordable display that's easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan, and DownScan Imaging™ to preloaded C-MAP® Contour™ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Find More Fish with Proven Lowrance Sonar

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from the structure and cover on high-detailed DownScan images.

Target Fish Live with ActiveTarget™ Live Sonar

Fish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Find Key Fishing Areas with Contour

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high resolution, bathymetric 1-foot contours on 15,000 U.S. lakes and 9,400 lakes in Canada.

Features:

• ActiveTarget™ Live Sonar ready
• Active Imaging 3-in-1 ready
• FishReveal™
• Preloaded C-MAP® Contour inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000 U.S. lakes and 9,400 lakes in Canada
• Mapping options including C-MAP®, Navionics® and more
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000®, and Ethernet connectivity
• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

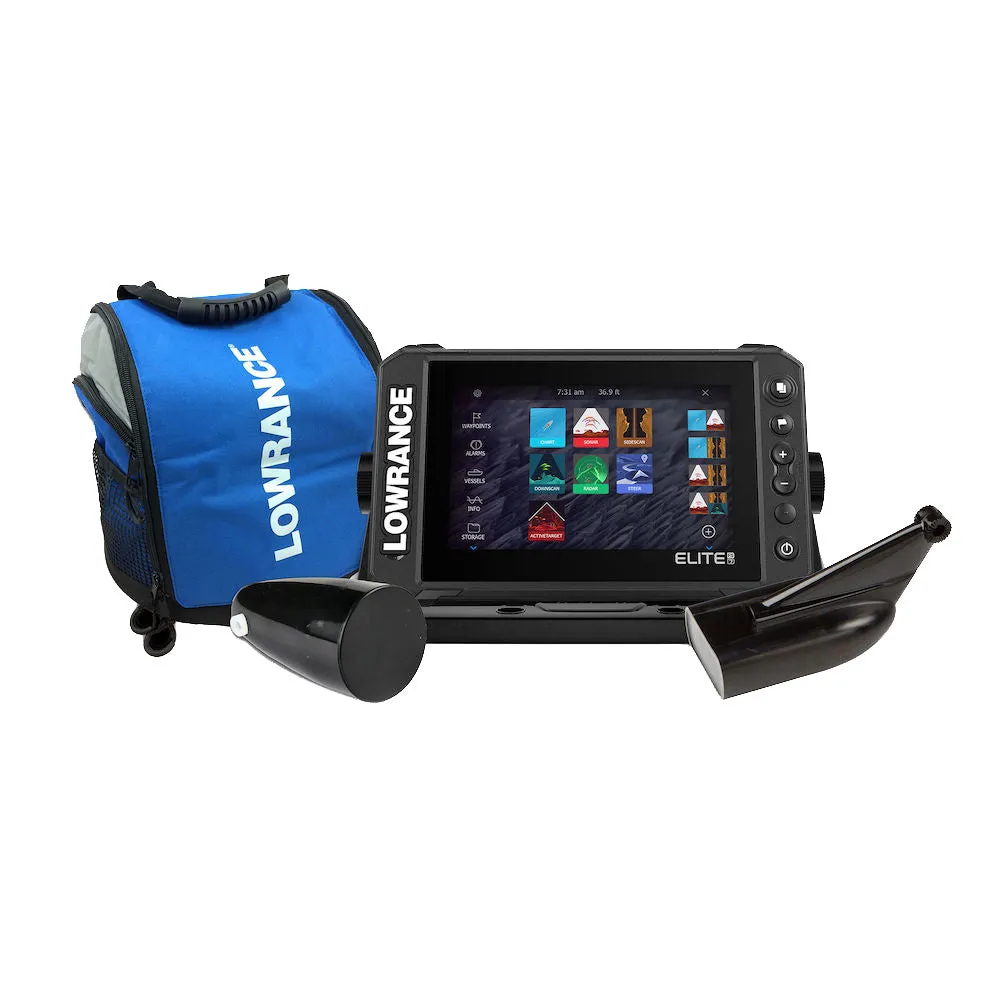

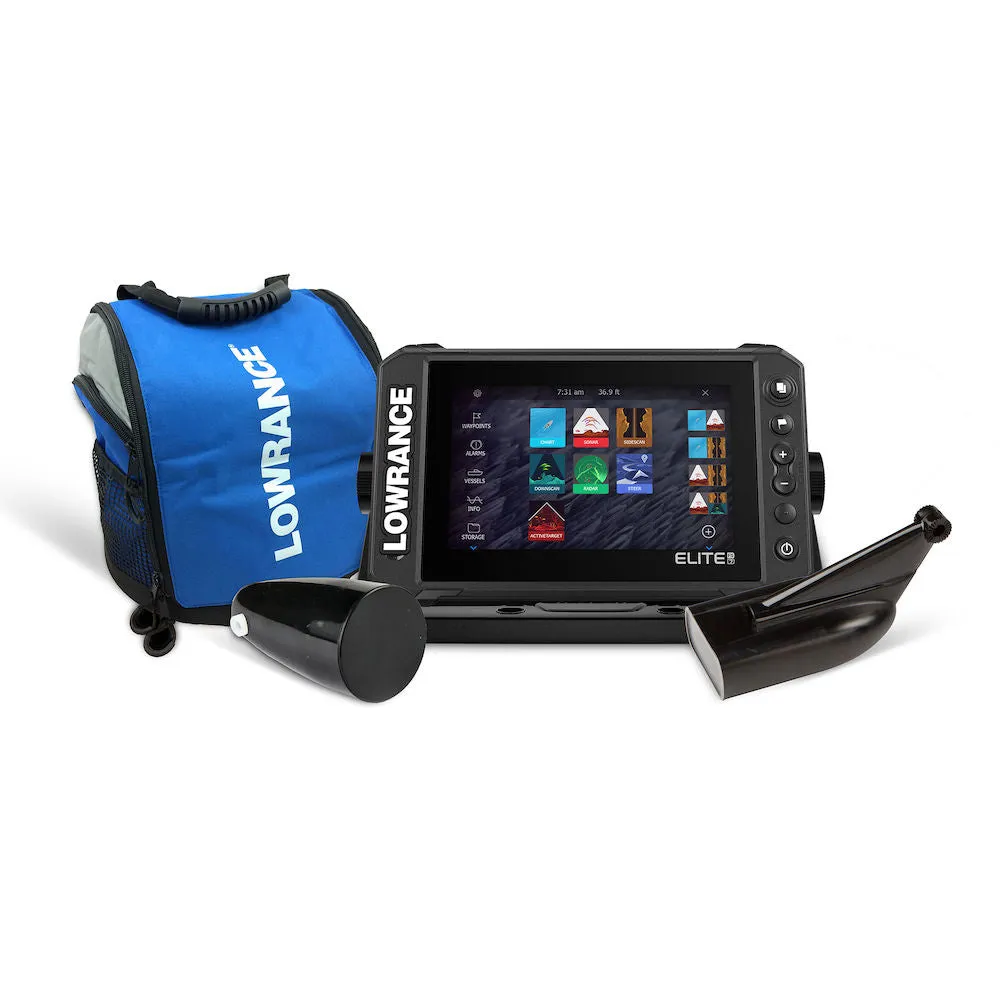

• Kit includes: Elite FS 7, carrying bag, HDI skimmer transducer, suction cup mount, ice transducer, mounting platform, power cable, 12V battery, and charger

Specifications:

• Screen Brightness: >1200 nits
• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Ports: 1 virtual ethernet port
• Warranty Period: 1 Year 4 additional years of upgrade options totaling 5 years
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS EGNOS MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Compass Safe: 12" (300mm)
• Supply Voltage: 12v DC (10.8-17VDC)
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
