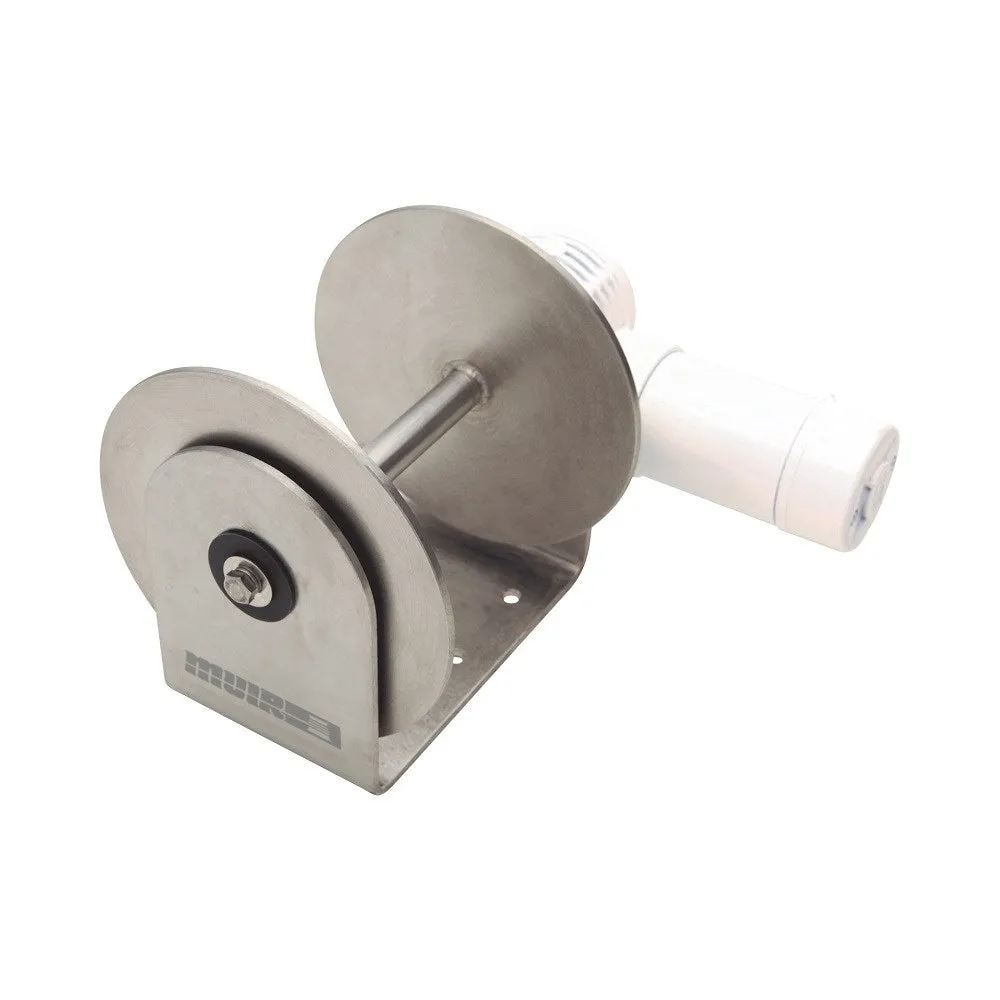

Muir DW08 Power / DFF08 FreeFall Drum Winches
- Muir’s patented Auto Free Fall, Power Up & Power Down, or Manual Release Free Fall are all available to you on the 1 unit!
- Mechanical Auto & Manual Release Free Fall means no troublesome electronics need to be mounted on the Drum or in your chain locker.
- Drum Shaft on a serviceable bearing centre for smooth hassle-free operation
- even under full load.
- Muir’s designed HDPE & UV protected Heavy Duty Brake means no over-run of the Drum during Free Fall.
- All Muir Free Falling Drum Winches are supplied with Circuit Breaker, Reversing Solenoid Pack, Helm Control Switch and Fascia Panels, plus, Simple Tools & Hardware for an easy 30 second adjustment from Auto Free Fall; to Manual Free Fall and Power Up Power Down options!
- Installation Instructions and Service Manual provided and backed by Muir’s 3-year limited warranty!
- Anchoring made easy, fast, and reliable with a Muir Drum Winch.
- No electronic components to fail.
- Larger Drum capacity than other Free Falls on the market.
- Does not require any more space than the standard Drum Winch
Vessel Length | 5 - 8 m (16 - 26 ft) |
Power Supply | 12 Vdc |
Motor | 600 W |
Max Load | 180 kg at 7 m/min (400 lb) |
Work Load | 75 kg at 33 m/min |
Max Line Speed | 33 m / min |
Chain Size | 6 - 8 mm (1/4 - 5/16”) |
Rope Size | 8 mm (5/16” |
Net Weight | DW 15 kg DFF 16 kg |
Capacity (Drum) | 120 m of 6 mm line or 80 m of 8 mm line 6 m of 6 mm chain |
