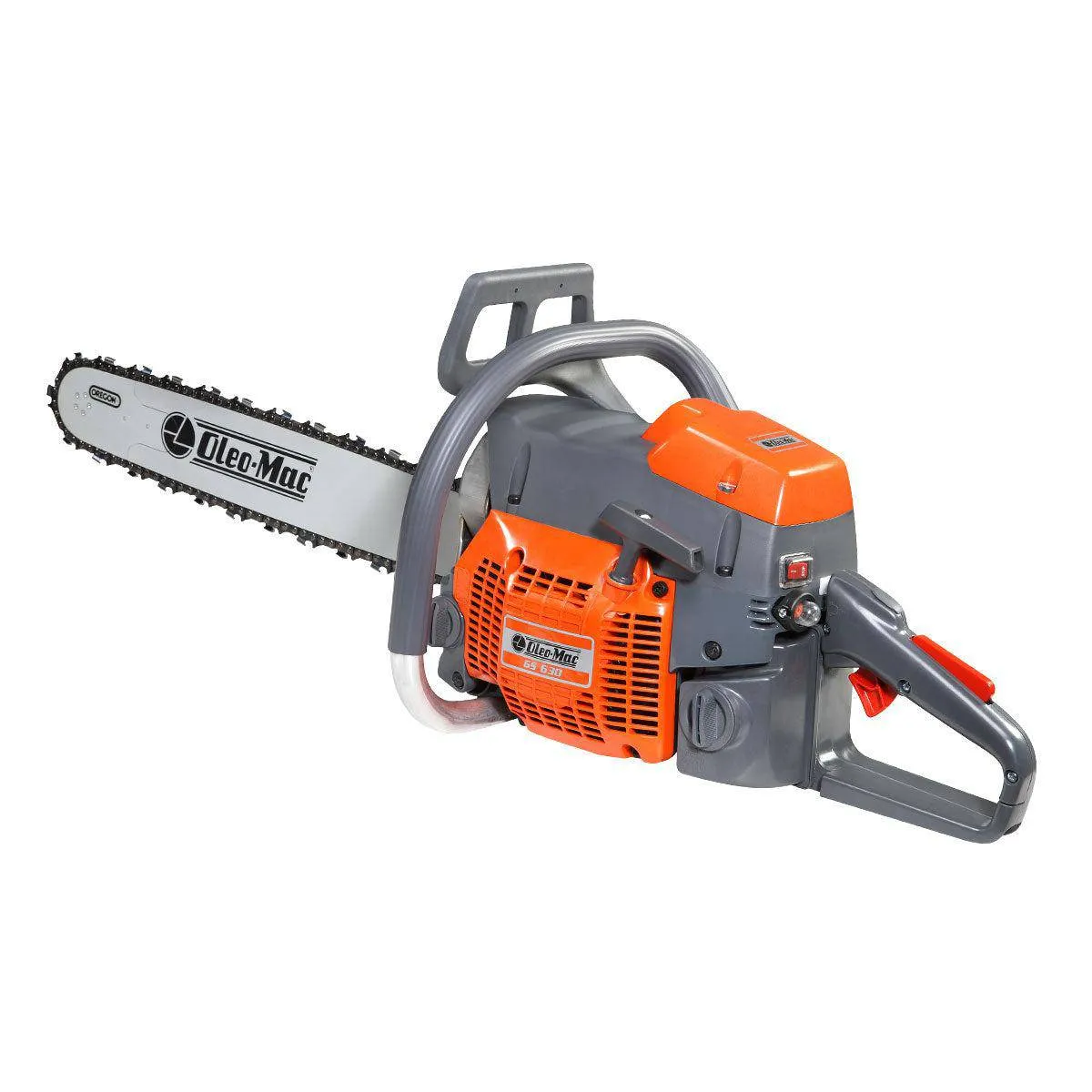

GS 630 chainsaw Model GS 630 is the new version of the 962, updated to comply with the latest European emissions and safety regulations. Suitable for felling, limbing and bucking large trees, the GS 630 is versatile, thanks to its high power and compatibility with guide bars from 16” to 20” in length, without having to relinquish the benefits of low overall weight. A digital coil, magnesium alloy crankcase and chain guard, automatic and adjustable aluminium oil pump, 3-piece forged steel crankshaft, and nickel plated cylinder make this machine rugged and reliable. A primer and decompressor make it possible to reduce the effort required for starting. A nylon filter and chain guard with a wide discharge section allow faster maintenance. Finally, comfort is assured by an anti-vibration system with vibration dampers and an aluminium handle clad in soft rubber
Performance and engineering solutions
— Professional Emak 2-stroke engine of
63.2 cc/4.7 HP (EURO 5):
• 3 piece forged steel crankshaft
• Machined and balanced
• Diamond-machined aluminium piston with 2 rings,
forged connecting rod, 2 roller bearings
• Nickel-plated cylinder,
• Metal crankcase, all guaranteeing high performance,
mechanical strength and long-term durability.
— Digital coil, flywheel with new fin geometry
and starter housing of optimized design with
large air intake slots: engine guaranteed to
run more smoothly with cooling rendered more
efficient, at whatever speed, even in difficult climatic
conditions (high temperatures)
— Carburettor bracket with 4 anti-vibration
mounts (a): guarantees stable fuel burn under all
operating conditions, and longer life of carburettor.
— Large nylon filter, labyrinth air prefiltering
system (b) with optimum filtering action, ideal for
heavily dust-laden environments.
Ease of use
— On/off switch, choke control placed closed to
the rear handle: guaranteed practical and simple to
use.
— Primer Device: boosts the fuel flow to the
carburettor to facilitatecold starts, starts after
refuelling, and starts after long periods of disuse.
— Decompressor valve: when activated, reduces
pressure in the combustion chamber to ensure the
engine will start easily, even from cold.
— Chain lubrication oil pump (aluminium) with
adjustable flow rate: facilitates the task of the
operator by allowing variation of the oil feed to suit
the workload on the machine and the type of wood.
Comfort
— Anti-vibration system using 6 mounts,
comprising 6 rubber stops, (a) and (b), located
between the handle and the crankcase: with
hands and body completely isolated from machine
vibrations, the operator benefits through increased
comfort.
— Front handle made of aluminium, covered
in soft rubber: ensures a firm, anatomically correct
and comfortable grip.
— Ergonomic controls: all functions of the machine
are easily reachable with just one hand, so that the
operator can work confidently without ever letting
go of the handle.
— Reinforced muffler designed to reduce noise
emissions even at maximum rpm.
Ease of maintenance
— Nylon air filter: the nylon mesh filter makes
cleaning operations quicker and easier and reduces
the rate of deterioration of the filter through time.
— Automatic chain lubrication oil pump with
adjustable flow rate: zero flow with engine at
idling speed ensures less caking of chips and dust,
consequently less time spent on maintenance,
and longer intervals between cleaning/servicing
operations.
— Chain guard with wide outlet section:
designed to facilitate clearance of chips and dust (less
caking), so that the part needs cleaning and servicing
less frequently. The two shields, rubber on the chain
guard (a) and plastic on the tank (b), offer maximum
strength in the event of the chain dropping off.
MODEL GS 630
TYPE 2 stroke Emak (EURO5)
DISPLACEMENT cm3 63.2
BORE x STROKE mm x mm 48 x 35
MAX POWER HP / kW (rpm) 4.7 / 3.5 (9,500)
MAX TORQUE Nm (rpm) 3.4 (6,500)
IDLE RPM rpm 2,500 ÷ 2,800
MAX RPM AT NO LOAD rpm 12,500
FUEL CONSUMPTION (max power) g/h (rpm) 1,630 (9,500)
IGNITION SYSTEM
TYPE Capacitive electronic
COIL Digital electronic
SPARK PLUG NGK BPMR8Y
ICE DEVICE SYSTEM no
EASY ON SYSTEM no
FUEL AND LUBRIFICATION SYSTEM
CARBURETOR Walbro HDA-350
AIR FILTER Nylon
FUEL Mix 4% with PROSINT oil 2% (50:1)
FUEL TANK CAPACITY l 0.70
PRIMER Yes
DECOMPRESSOR Yes
TRANSMISSION SYSTEM
TRANSMISSION Pinion
CLUTCH Centrifugal (3600 rpm clutch engagement)
PINION TEETH (N°) 7
SAFETY
NOISE PRESSURE (LpA av EN 11681-1, EN 22868) dB(A) 104,1
NOISE POWER (LWA 2000/14/EC, EN 22868, EN ISO 3744) dB(A) 115
VIBRATION LEVEL (EN 11681-1, EN 22867, EN 12096) -
CHAIN 3/8” x .058” m/s2 5,9 sx - 6,8 dx
UNCERTAINTY (EN 12096) - CHAIN 3/8” x .058” m/s2 1,8 sx - 1,7 dx
ERGONOMICS
FRONT HANDLE Rubber covering
REAR HANDLE Ergonomic Plastic
ANTIVIBRATION SYSTEM 6 rubber stops
CUTTING SYSTEM
BAR LENGHT cm (inch) 41 - 46 - 51 (16 " - 18” - 20")
CHAIN PITCH / GAUGE inch 3/8” x .058” - .325” x .058”
CHAIN BRAKE Inertia-activated
OIL TANK VOLUME l 0.35
OIL PUMP Automatic / Adjustable / zero flow at minimum
CHAIN TENSIONER On the Front
HOOK Steel
HOMOLOGATIONS
WEIGHT (Without cutters and bar) kg 5.8
WEIGHT POWER RATIO kg/kW 1.7
