- Freight included in price*
- Factory install included in price
- In stock as of 1.15.25

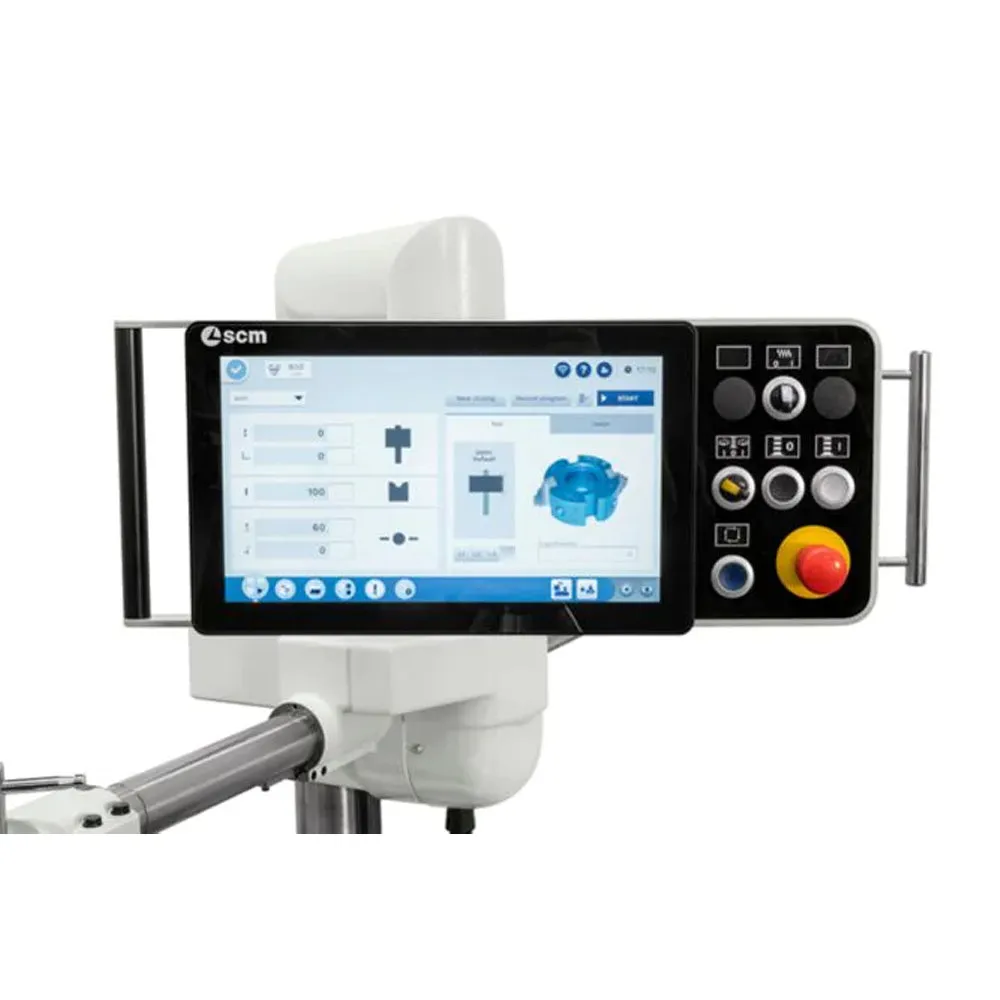

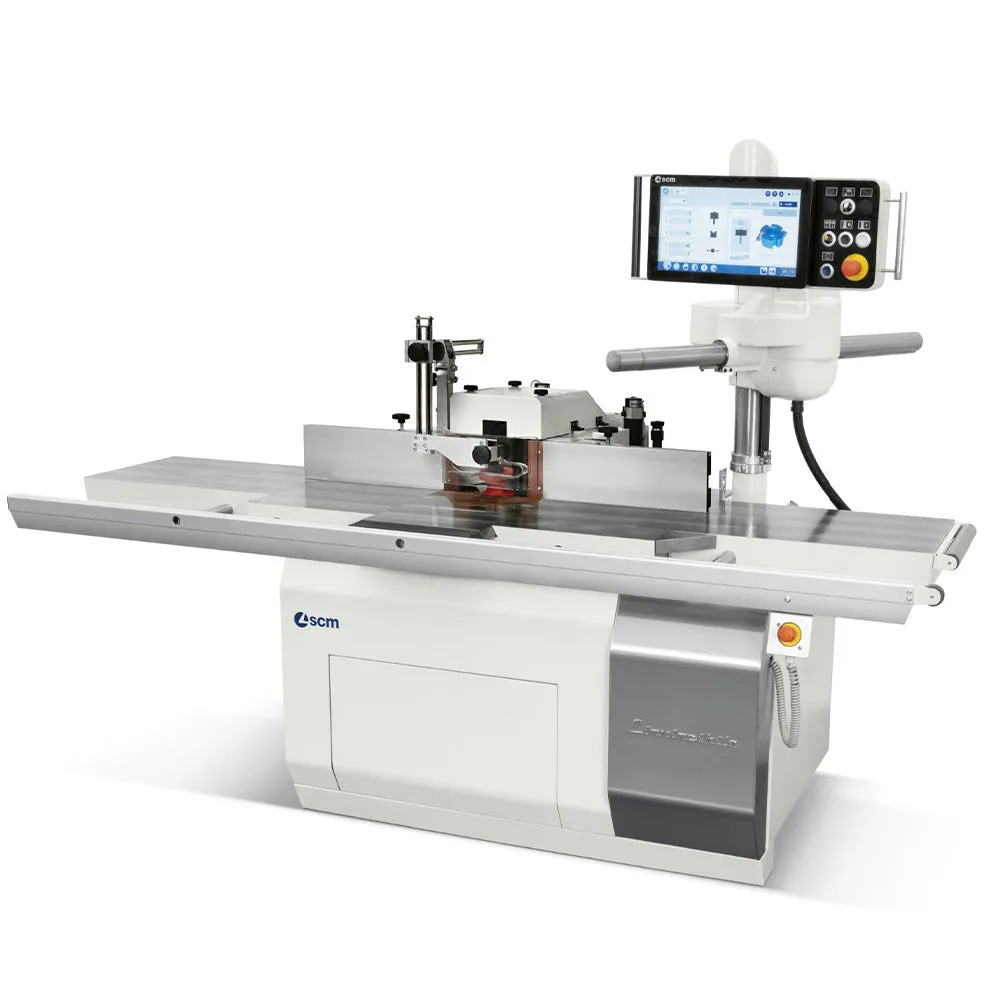

The L’invincibile TF 5 combines old world quality with new age technology. It comes standard with the "Eye-S," a 15" touch-screen control panel that gives you full control of up to 4 working axes: spindle height, shaft rotating speed, "FAST" table, and whole fence assembly. The Eye-S also has storage capacity for up to 1,000 programs and 1,000 tools.

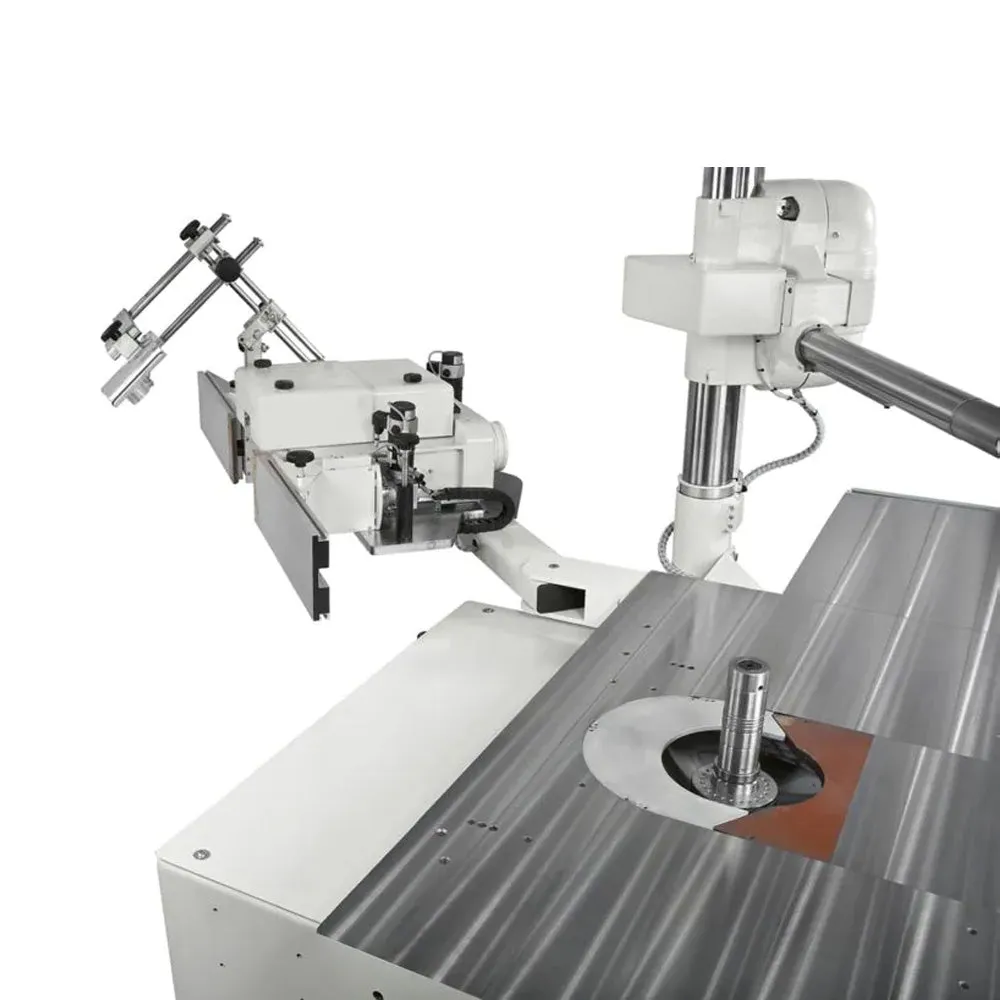

The "FLEX" fence can retract and be re-positioned on the worktable in one simple movement. It can also be moved away from the worktable if needed. Includes aluminum profiling fence with connecting bars.
Safety/protections on the TF 5 include:
- Spindle protection
- Mechanical brake on main motor
- Safety sensors for changing tool operation
- Rotating stop control, tool taper locking/unlocking
- Safety microswitch on motor access door
- Emergency push buttons
- Main power switch can be locked in the off position
- Overload switch protection
- 24V auxiliary low voltage circuit
[TABS]
Features
- "Eye-S" 15" touch-screen display
- FLEX fence with auto adjustment
- Electric presetting for feeder support
- Reverse spindle rotation
- "FAST" section table with auto adjustment
- Auto star-delta start
Specs
Motor power: 11hp
*Electrical requirements: 400V, 3-phase, 26A
Worktable dimensions: 47.2" x 28.7" (1,200 x 730 mm)
Working length of spindle: 5.5" (140 mm)
Spindle base projection from table: 2" (52 mm)
*Subject to change; must be verified prior to installation.
*Shipping
Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.
[/TABS]
