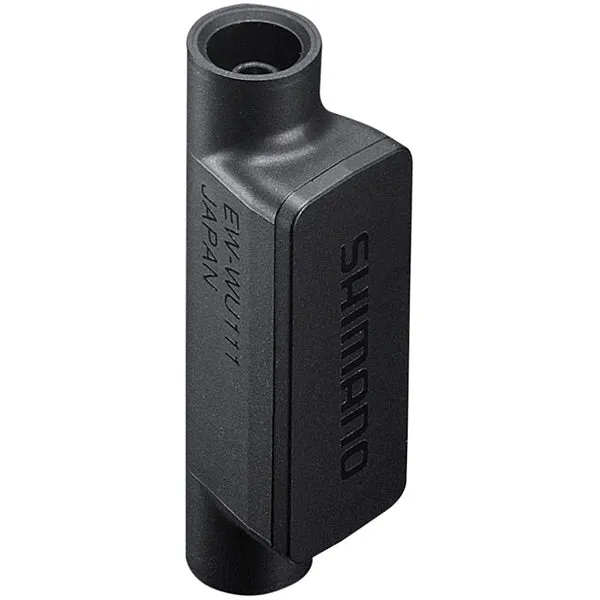

Shimano Di2 EW-WU111 E-Tube Wireless Unit - 2 Port

Shumano's WU101 wireless unit connects inline to a DI2 E-TUBE system enabling the use and connectivity of ANT and Bluetooth LE compatible accessories. It also allows the use of Shimano's smartphone and tablet E-tube project software for maintenance and system updates.

Expand your use and compatibility through a small wireless unit the EW-WU111, the Di2 system can communicate via ANT private protocol with different devices (such as Garmin, Wahoo GPS computer units).

The EW-WU111 can be connected with your smart phone, tablet or PC and once connected, shows your set up and current battery status. The connection between the two devices is made over the new E-Tube App via Bluetooth. A variety of possibilities are being offered such as:

• Functional assignments,

• Shifter lever settings,

• Multi & synchro-shift settings

• Option of firmware upgrades on the components

E-Tube: E-tube is a system platform in order to achieve the Di2 (Digital Integrated Intelligence) concept. E-tube transmits interactive signals and power supply to each electronic component by “plug & play connection. E-tube is a no rust, no stretch, no freeze system and it ensures advanced low maintenance. E-tube project offers, besides customized setting of the electronic components, an update to firmware via Windows PC, tablet or smartphone. You have access to a range of options for a quick check of the electronic components or the system status.

Shimano D-Fly: Shimano D-Fly builds on the capabilities of the E-Tube wiring and electronics found in the latest Shimano Di2 electronic shifting systems for road bicycles. This wireless component adds another dimension to the Di2 experience by wirelessly connecting riders to their Di2 data through a cycling computer.

Specifications:

• Model no: EW-WU111

• Series: DURA-ACE R9150 Series

• Firmware update by E-Tube project: Yes

• Compatible system: Bluetooth®LE corresponding master unit

• Wireless system: ANT private* Bluetooth®LE

• E-tube port (pcs): 2

• Wireless system: ANT private* Bluetooth®LE

• SD50 port (pcs): 2

• Compatible with Garmin Edge 1000 and PRO SCIO ANT cycling computer

• Requires additional e-Tube wire

• Weight: 5g

• Compatible with Dura-Ace 9070, Ultegra 6870 Di2 and Ultegra 6770 Di2 road shifting systems. Additionally, you can use the top mounted buttons (also known as the secret buttons), on either the Dura-Ace 9150, 9070, or Ultegra 8050/8060 shifters to control external devices like a Garmin head unit, a camera, or another bluetooth or ant device using the E-Tube software.

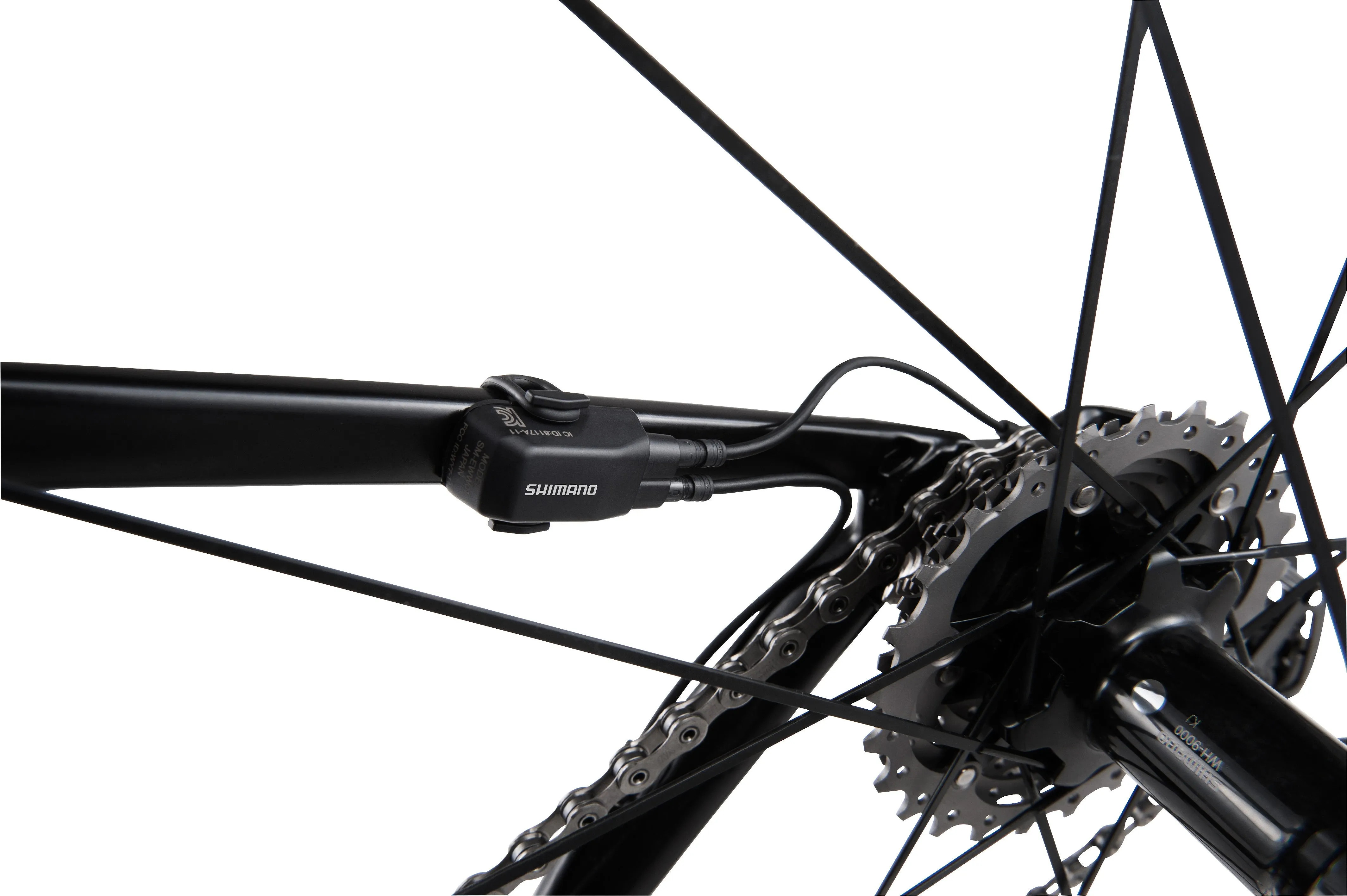

• Plugs inline anywhere in compatible systems, external mounting recommended

• Powered by Di2 shifting system battery

• Dimensions: 38mm x 25mm x 12.5mm
