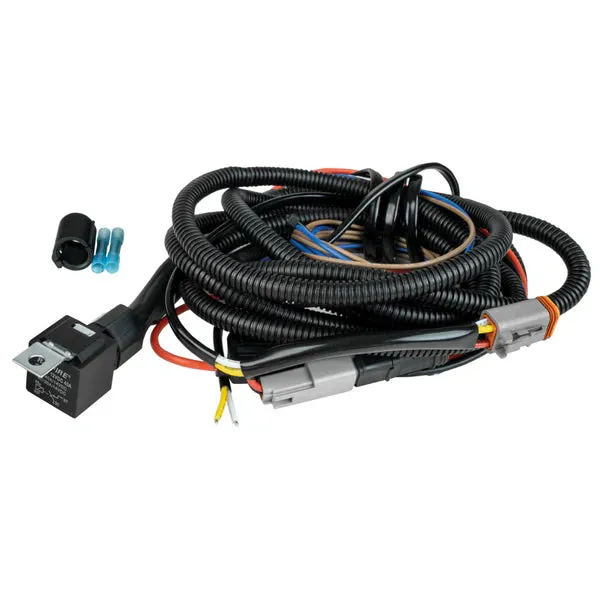

SIBERIA CABLE KIT PROFESSIONAL 1X DT

A professional cable set with 1x DT connector. Works perfectly for connecting one Led bar. A fast, simple, and professional installation. The climate of the north creates both opportunities and dangers for the vehicle on the roads. On Siberia cable set pro 1x DT, a protective hose encloses the cables and the DT connector to provide extra protection. Both a mechanical protection against impact and wear as well as against dirt and water.The signal cable (brown 86) is used to connect the relay to our Canbus Interface. If the car is not touched by Canbus, pick up the signal directly from the car’s headlights with this cable. Siberia cable set professionals 1x DT have more uses. There is in addition Output 2 (blue 87A) which is used to be able to control another signal such as the position light on Siberia and the Dark Knight series. Output 2 is used when using XBB.From the cable set comes a two-pole DT connector and since both Siberia and the Dark Knight series use four-pole DT connectors due to dual position lights, it is sent with an adapter cable to convert from four-pole to two-pole DT connector. The adapter cable also has two loose cables that are used to supply power to the position light.The DT connector is only adapted for a consumption of 156W and if you are going to connect more people who consume more than 156W, this cable set can handle a maximum of 360W if the DT connector is cut off. Can for example be used for Siberia DR LED BAR 42” and 52”.Siberia cable set pro 1x DT makes it easy to perform a professional assembly. If you need to cut in the cable for various reasons, you can easily do so. Because there are two waterproof, shrinkable splice that make it possible to make a secure and tight closure afterwards and a hose clamp to reconnect the protective hose. But it is important that you cut at least 50 cm from the relay to ensure that the cable does not meet any moisture.

– For connection of lighting with both two-pole DT connector and four-pole DT connector.

– Protective hose that protects against impact and wear as well as moisture and dirt.

– Possibility to adjust the length of the cable, for an easier and nicer installation.

– An extra cable (blue 87A), for connecting, for example, XXB. To switch on, for example, position lights.

–  Voltage (V DC): 12
