FEATURES
- Simple operation and installation
- Attractive, flame retardant (UL® 94V-0) plastic panel
- Fits standard single-gang electrical box
- Visual indication of activation
DESCRIPTION

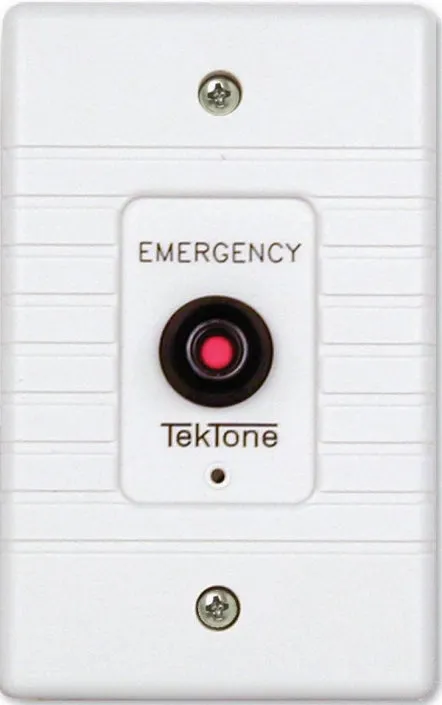

The SF154B Emergency Call Switch features a push button switch with DPDT (double-pole double-throw) contacts which are available via wire pigtail. The switch comes pre-wired with both normally open terminals available individually.
The switch has a mechanical eye arrangement inside, which provides for positive indication of activation without the need for external power. The switch features push-on pushoff operation. The SF154B is designed as a single-gang (UL® 94V-0) plastic panel that fits a standard single-gang electrical box.
SPECIFICATIONS
- Dimensions:
- Height: 4.5" (115 mm)
- Width: 2.8125" (72 mm)
- Depth: 1.5" (39 mm)
- Projects: 0.8125" (21 mm) (From mounting surface)
- Construction: Flame retardant (UL® 94V-0) plastic
- Housing: Single-gang ring or box.
WARRANTY
One (1) year manufacturer's warranty plus an exclusive one (1) year BuyTekTone.com extended manufacturer's warranty.*
